RF & Microwave Assemblies
Custom coaxial cable assemblies engineered for frequencies from DC to 110 GHz. We build with semi-rigid, semi-flexible, conformable, and flexible coaxial...
- DC to 110 GHz range
- Low VSWR < 1.15:1
- Phase-matched assemblies
Cable Assembly
Custom Coaxial Cable Assembly Manufacturing Services
Precision-built RF coaxial cable assemblies from DC to 110 GHz. Expert connector termination, 100% VSWR tested, and delivered with full test certification. From prototypes to high-volume production.
Max Frequency110 GHz
VSWR Typical< 1.15
RF Tested100%
Shielding90+ dB
Application Context
Why Engineers Choose WellPCB for Coaxial Cable Assemblies
When signal integrity determines whether your system meets spec or fails qualification, your coaxial cable assemblies cannot be an afterthought. Every decibel of insertion loss, every point of VSWR, and every degree of phase stability matters — especially at frequencies above 6 GHz where marginal assemblies degrade system performance.
WellPCB manufactures custom coaxial cable assemblies for RF engineers who need repeatable, tested, and documented performance across thousands of units. Our IPC-certified technicians build with cables and connectors from leading manufacturers, and every single assembly ships with verified electrical test data — not sample-based lot testing, but 100% individual verification.
From single prototype assemblies for lab validation to production runs of 50,000+ units per month for telecom infrastructure, we deliver the same quality standard with full material traceability. Our two manufacturing facilities in China and the Philippines let you source locally while maintaining consistent specifications globally.
Capabilities
Coaxial Cable Assembly Capabilities
End-to-end RF cable assembly services from design review through production and testing.
EMI/RFI Shielding Excellence
Multi-layer shielding architectures combining braided copper, foil wrap, and conductive jackets deliver shielding effectiveness exceeding 90 dB for...
- > 90 dB shielding
- Triple-shielded options
- Foil + braid combinations
Precision Impedance Control
Tight impedance tolerance assemblies at 50 Ohm, 75 Ohm, and 93 Ohm standard values. Custom impedance matching available for specialized test and measurement...
- 50/75/93 Ohm standard
- ± 1 Ohm tolerance
- TDR verified
Connector Integration
Expert termination of all major RF connector families — SMA, BNC, TNC, N-Type, SMB, MCX, MMCX, QMA, and 7/16 DIN. Solder, crimp, and compression attachment...
- SMA, BNC, N-Type, TNC
- Crimp & solder termination
- Pull-force tested 100%
Multi-Coax & Bundled Assemblies
Complex multi-coaxial cable harnesses with breakout configurations for antenna systems, phased arrays, and test equipment. Cable routing, labeling, and...
- Multi-conductor breakouts
- Phased array harnesses
- Custom routing & labeling
Environmental Qualification
Assemblies tested and qualified for extreme operating conditions including high altitude, temperature cycling (-55 °C to +200 °C), vibration, salt fog, and...
- -55 °C to +200 °C
- MIL-STD qualified
- Salt fog & vibration tested
Engineering Challenges
What determines RF assembly performance
Signal Integrity & Loss
Insertion loss, VSWR and return loss controlled across the rated band — especially above 6 GHz, where marginal assemblies degrade system performance.
EMI / RFI Shielding
Multi-layer braid, foil wrap and conductive jackets deliver shielding effectiveness exceeding 90 dB to keep external noise out of the signal path.
Impedance Control
Tight 50 / 75 / 93 Ohm tolerance held to ± 1 Ohm and TDR-verified, with custom impedance matching for specialized test and measurement builds.
Termination & Test Rigor
IPC-certified termination, 100% pull-force testing and full VSWR / continuity / hi-pot verification on every unit — not sample-based lot testing.
Technical Capabilities
Technical Specifications
Performance parameters for our coaxial cable assembly manufacturing.
Impedance Options50 Ohm, 75 Ohm, 93 Ohm (custom available)
Frequency RangeDC to 110 GHz (cable dependent)
VSWR< 1.15:1 typical at rated frequency
Insertion LossPer cable type datasheet, tested 100%
Return Loss> 20 dB typical (frequency dependent)
Shielding Effectiveness> 90 dB (triple-shield configurations)
Cable TypesRG-58, RG-59, RG-174, RG-316, LMR-200/400, Semi-rigid
Connector FamiliesSMA, BNC, TNC, N-Type, SMB, MCX, MMCX, QMA, 7/16 DIN
Termination MethodsSolder, crimp, compression, push-on
Operating Temperature-55 °C to +200 °C (material dependent)
Assembly Length25 mm to 100 m+ (custom lengths)
Dielectric WithstandUp to 5000 V RMS per MIL-STD-202
Standards ComplianceMIL-DTL-17, MIL-C-39012, IEC 61169
Quality TestingContinuity, VSWR, TDR, hi-pot, pull-force 100%
Manufacturing Process
Our Coaxial Cable Assembly Process
01Requirements Review & Design
02Material Procurement & Verification
03Precision Cable Preparation
04Connector Termination
05Electrical Testing & Certification
06Labeling, Packaging & Delivery
Quality & Testing
Every assembly tested and documented

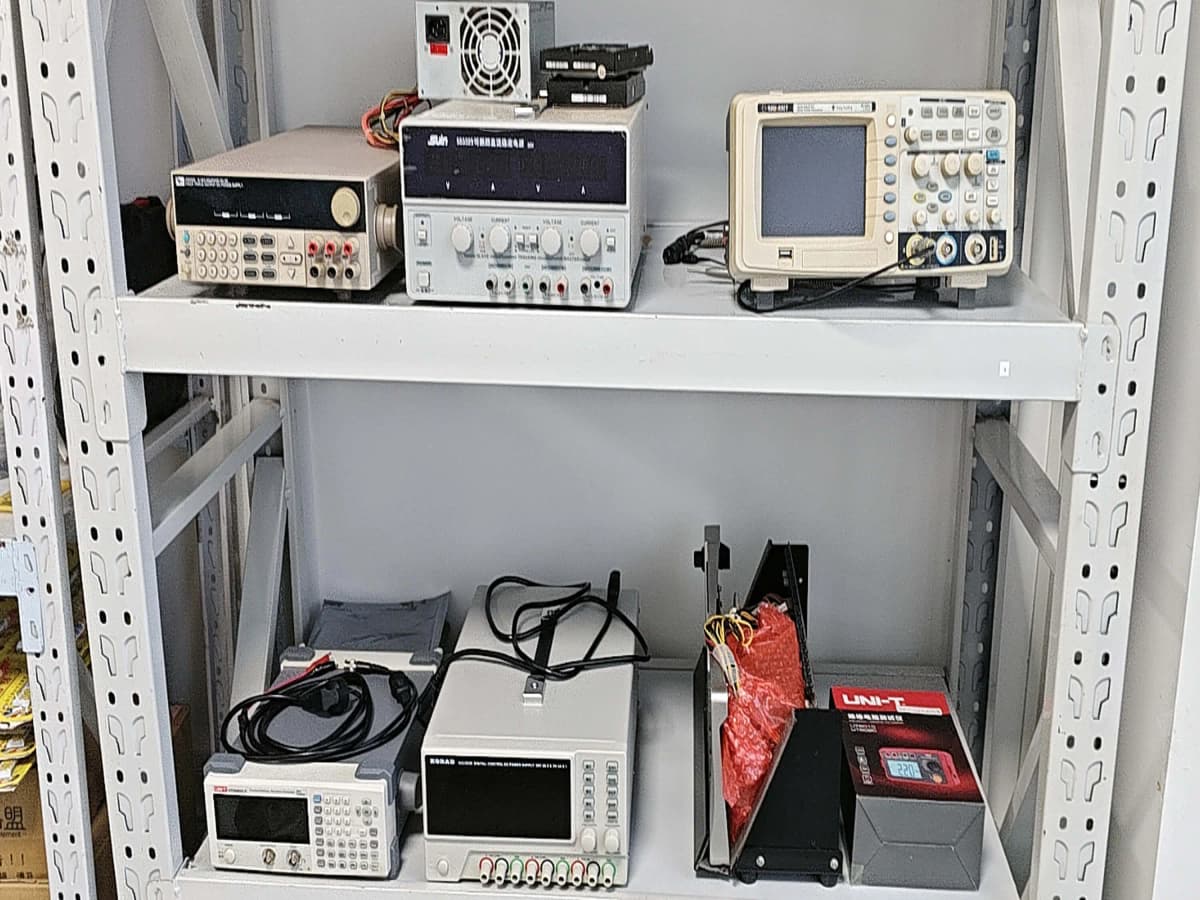

Every coaxial assembly undergoes 100% electrical testing — continuity, VSWR / return loss on calibrated network analyzers, insertion loss, and dielectric withstand — with serialized test data traceable to each unit, not sample-based lot testing. Test equipment is calibrated annually to NIST-traceable standards.
Material VerificationContinuity TestVSWR / Return LossInsertion LossTDR VerificationDielectric Withstand (Hi-Pot)Pull-Force TestSerialized Test DataLot Traceability
Why WHP
Why engineers rely on our RF cable assemblies
100% Individual RF Test
Every single assembly ships with verified electrical test data — not sample-based lot testing, but 100% individual verification of continuity, VSWR and dielectric withstand.
Full Material Traceability
Cables and connectors are sourced from leading manufacturers through authorized distributors, inspected on receipt, and verified against manufacturer specifications with traceable records.
IPC-Certified Workmanship
Terminations are made by IPC-certified technicians to IPC/WHMA-A-620 standards, visually inspected under magnification and 100% pull-force tested.
Global Manufacturing Footprint
Two facilities in China and the Philippines let you source locally while maintaining consistent specifications globally, from single prototypes to 50,000+ units per month.
RF cable standards & compliance
ISO 9001:2015 certified and IPC/WHMA-A-620 compliant, with assemblies built to the RF cable and connector standards demanding programs require.
ISO 9001:2015Certified
IPC/WHMA-A-620Compliant
MIL-DTL-17MIL-C-39012 · IEC 61169
FAQ
Frequently Asked Questions
What types of coaxial cable do you work with?
We manufacture assemblies using the full range of coaxial cable types: flexible (RG-58, RG-59, RG-174, RG-316, RG-142), low-loss (LMR-100/200/400/600), semi-rigid (0.047" to 0.250"), conformable/hand-formable, and micro-coaxial cables. We source from leading manufacturers including Times Microwave, Huber+Suhner, and Belden to ensure consistent electrical performance.
What is your minimum order quantity for coaxial cable assemblies?
Our minimum order quantity starts at just 10 pieces for standard configurations. For prototypes and engineering samples, we accept orders from 1 piece with expedited 3-5 day turnaround. Production runs scale from hundreds to tens of thousands per month with volume pricing.
How do you ensure the RF performance of each cable assembly?
Every coaxial assembly undergoes 100% electrical testing including continuity verification, VSWR/return loss measurement using calibrated network analyzers, and dielectric withstand testing. For critical applications, we provide individual test reports with swept frequency data. Our test equipment is calibrated annually to NIST-traceable standards.
Can you build phase-matched coaxial cable assemblies?
Yes, we specialize in phase-matched assembly sets for antenna arrays, phased-array radar, and multi-channel test systems. We achieve phase matching to ± 1 degree at the specified frequency using precision cable cutting, TDR measurement, and iterative trimming. Each set ships with a phase match certificate.
What connector types can you terminate?
We terminate all standard RF connector families: SMA, 2.92mm (K), 2.4mm, 3.5mm, BNC, TNC, N-Type, SMB, SMC, MCX, MMCX, QMA, 7/16 DIN, and F-Type. We stock a wide range of straight, right-angle, bulkhead, and panel-mount configurations in both 50 Ohm and 75 Ohm impedances.
Do you provide MIL-spec coaxial cable assemblies?
Yes, we build coaxial cable assemblies conforming to MIL-DTL-17 (cable) and MIL-C-39012 (connectors). Our processes follow IPC/WHMA-A-620 workmanship standards and MIL-STD-202 environmental testing methods. We can provide assemblies with full military qualification documentation for defense programs.
OEM Program Entry
Ready to Source Your Coaxial Cable Assemblies?
Join hundreds of RF engineers and OEMs who trust WellPCB for consistent, tested, production-ready coaxial cable assemblies. Get your quote today.
We will review
- 01Design Feasibility
- 02Component Availability
- 03Cost Drivers
- 04Validation Requirements
Related Capabilities
Related Services
Industries & Applications
Industries & Applications
Coaxial cable assemblies engineered for demanding signal transmission requirements.
Telecommunications & 5G Infrastructure
High-performance coaxial assemblies for cell towers, base stations, distributed antenna systems (DAS), and small cell deployments. Low-loss cables with...
Aerospace & Defense
MIL-spec coaxial cable assemblies for radar systems, electronic warfare, satellite communications, and avionics. Phase-stable designs rated for extreme...
Medical Imaging & Diagnostics
Precision coaxial assemblies for MRI, CT, ultrasound, and patient monitoring equipment. Biocompatible jackets, low-noise construction, and consistent signal...
Test & Measurement Equipment
Phase-stable, low-loss coaxial assemblies for network analyzers, spectrum analyzers, oscilloscopes, and signal generators. Calibrated and certified to meet...
Broadcast & Video Production
75 Ohm precision coaxial assemblies for HD/4K/8K video transmission, broadcast studios, and outside broadcast units. BNC and 12G-SDI compatible connectors...
Industrial IoT & Wireless Systems
Coaxial pigtails, jumper cables, and antenna feeder assemblies for Wi-Fi, LoRa, Zigbee, and cellular IoT gateways. Compact form factors with SMA, U.FL, and...
Process Detail
Six steps from specification to certified assemblies
Six steps from your specification to fully tested, certified cable assemblies.
Requirements Review & Design
Our RF engineers review your specifications, select the optimal cable and connector combination, and provide a detailed assembly drawing for your approval.
Material Procurement & Verification
We source genuine cables and connectors from authorized distributors. All incoming materials are inspected and verified against manufacturer specifications.
Precision Cable Preparation
Automated cutting to ± 0.5 mm tolerance. Multi-step stripping with controlled dimensions for each cable layer — jacket, shield, dielectric, and center...
Connector Termination
Expert solder or crimp termination by IPC-certified technicians. Each termination is visually inspected under magnification and pull-force tested to...
Electrical Testing & Certification
100% testing of every assembly: continuity, VSWR/return loss sweep, insertion loss, and dielectric withstand voltage. Test data recorded and traceable to...
Labeling, Packaging & Delivery
Custom labeling with serial numbers and test data. Anti-static packaging with protective caps on all connectors. Global shipping with lead times from 5 to...
Working With Us
Request a Coaxial Cable Assembly Quote
Share your specifications and our RF engineering team will provide a detailed quote within 24 hours. Upload your drawings or cable assembly specifications for the most accurate pricing.
Fast Response
- Quote within 24 hours
Low MOQ
- From 1 piece for prototypes, 10+ for production
Quick Turnaround
- Prototypes in 3-5 days, production 5-15 days
From Our Founder
“In RF cable assembly, the difference between a good product and a failed one often comes down to termination quality and testing rigor. We test every single assembly — not batches, not samples — because our customers' systems depend on consistent performance from the first cable to the ten-thousandth.”
Hommer Zhao — Founder & CEO, WellPCB
