Cable Assembly
If your RFQ only says "JST connector" you can still lose weeks in sampling. We review JST series selection, wire range, crimp tooling, mating orientation, MOQ, and test scope before first articles ship, so procurement gets a quote that matches the real build.
Application Context
A JST harness is defined by its connector system, not just a housing part number. JST families such as PH, XH, SH, GH, EH, VH and JWPF use small-pitch terminals where a housing on its own tells you almost nothing about buildability — the terminal series, wire gauge, tin plating, pull-force target, strip length and mating orientation all have to line up before the first article ships. If an RFQ only says “JST connector”, weeks can be lost in sampling. We review JST series selection, wire range, crimp tooling, MOQ and test scope before quotation so procurement gets a quote that matches the real build.
JST is frequently one section of a larger BOM, so a program can mix wire-to-board and wire-to-wire branches, or pair JST with other connector families. When a drawing references multiple brands we consolidate sourcing under one controlled build — including Molex, TE Connectivity and other series through our connector sourcing service. Every assembly is built with 100% electrical test and the documentation options OEM procurement needs to release a supplier.
What Buyers Need
Commercial details that prevent connector mismatches, late sample rework, and unstable production launches.
We build assemblies around JST PH, XH, SH, GH, EH, VH, JWPF, and related series used in consumer electronics, battery packs, small appliances, industrial controls, and compact medical devices.
Many delays start when housing part numbers are present but terminal, wire gauge, tin plating, pull-force targets, or strip-length assumptions are missing. We review those gaps before quotation so your first sample is not a discovery exercise.
The same program can move from engineering samples to repeat production with locked BOM revisions, labeling, test criteria, and packaging rules. That matters for buyers who need a clean handoff from NPI to procurement.
Engineering Challenges
A housing without the correct terminal, wire range, tin plating or mating orientation still leads to scrap and rework. We review the full connection system before quotation, not only the housing reference.
Compact JST terminals leave little margin for strip-length drift, damaged strands or incomplete insertion. We treat JST crimp quality as a monitored process, not a bench-assembly task.
Missing wire gauge, tooling or volume assumptions hide risk in the offer. Sending the drawing, BOM, quantity forecast, sample target and test requirements together lets us quote the right MOQ and lead time.
Moving from engineering samples to repeat production needs locked BOM revisions, labeling, test criteria and packaging rules so NPI hands off cleanly to procurement.
Technical Capabilities
Genuine JST series coverage with crimp-tooling review, low-MOQ samples and production-ready documentation before release.
Manufacturing Process
Quality & Testing
Every JST assembly gets 100% continuity, shorts and polarity verification, with pull-force or insulation-resistance checks when specified. Quote review, BOM check, sample report, COC and packing detail are provided as the program requires.
Why WHP
Procurement risk falls when the supplier reviews the connector family and build assumptions before the first sample is released.
A housing without the correct terminal, seal strategy, wire range, or mating orientation still leads to scrap and rework. We review the full connection system, not just the housing reference.
Compact terminals leave less margin for strip-length drift, damaged strands, and incomplete insertion. Buyers need a supplier that treats JST crimp quality as a process issue, not a bench-assembly task.
When you send the drawing, BOM, quantity forecast, sample target, and test requirements together, we can quote the right MOQ, lead time, and documentation plan without hiding risk in the commercial offer.
We build under an ISO 9001:2015 and IATF 16949:2016 certified quality system, following IPC/WHMA-A-620 workmanship for cable and harness assembly.
FAQ
OEM Program Entry
Send your drawing, BOM, JST series, quantity, and sample target. We will review build risk, confirm MOQ and lead time, and return a procurement-ready quote with the next engineering checkpoints.
Related Capabilities
Other connector-brand harnesses and sourcing services that pair with JST programs.
Typical Programs
Common buying scenarios where small-pitch connectors and repeatable crimp quality matter more than generic low-cost cable work.

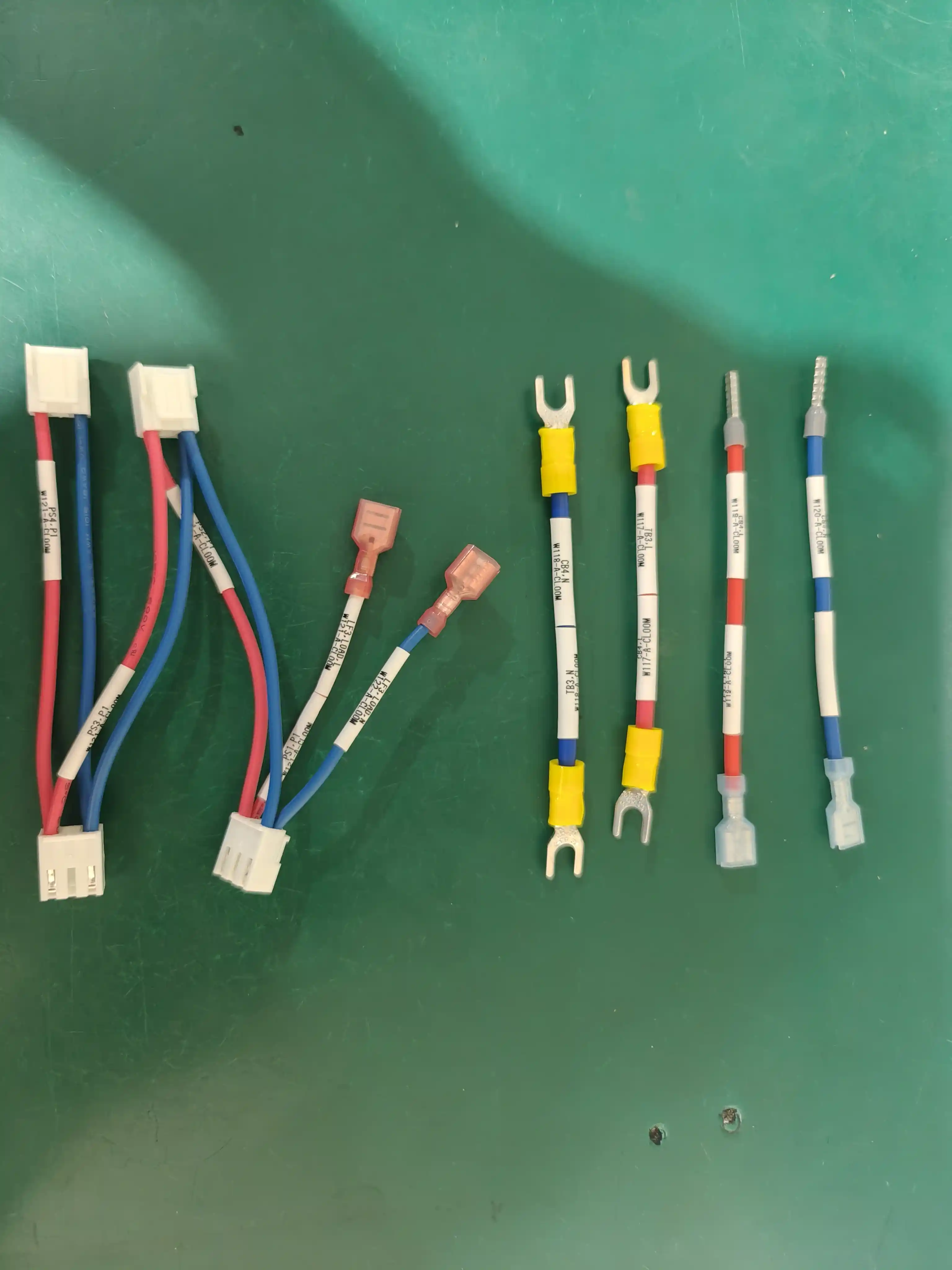

Display harnesses, board-to-board jumpers, fan leads, LED module wiring, and internal device harnesses where pitch, insertion direction, and routing space are tightly constrained.
Pack leads, balance leads, charger harnesses, and low-voltage power branches that need the correct JST family, current rating, and keyed mating interface.
Sensor cables, control panel pigtails, compact motion wiring, and internal signal harnesses where buyers need stable sourcing, traceable builds, and 100% electrical test records.
Representative project type (illustrative)
Representative project type we handle, shown for illustration. Not a specific named customer.
Scenario. A robotics and automation company required custom cable assemblies integrating multiple premium connector brands for their advanced automation systems.
Challenge. The client needed a contract manufacturer capable of sourcing and assembling custom cables using a diverse mix of connector brands (JST, TE, MOLEX, ANDERSON, SUMITOMO) while ensuring compliance with rigorous quality standards for high-reliability robotic applications.
Solution. Consolidated multi-brand connector sourcing and custom assembly under ISO 9001:2015 and IATF 16949:2016 certified manufacturing processes, strictly adhering to IPC/WHMA-A-620 production standards to meet the client's high-reliability requirements.
Result. Successfully qualified as the manufacturing partner, securing an initial production order and establishing a baseline for ongoing high-tech robotics manufacturing support.
Reference Points
For small-pitch cable assemblies, buyers usually compare workmanship discipline, quality-system maturity, and safety context before approving a supplier.
