Cable Assembly

Custom Ribbon Cable Assembly Manufacturing Services

Precision flat ribbon cable assemblies with IDC, D-Sub, and ZIF connectors — from 4 to 80 conductors. continuity tested to the customer-agreed plan and delivered with full inspection reports. Lead time depends on complexity; confirmed in your quote.

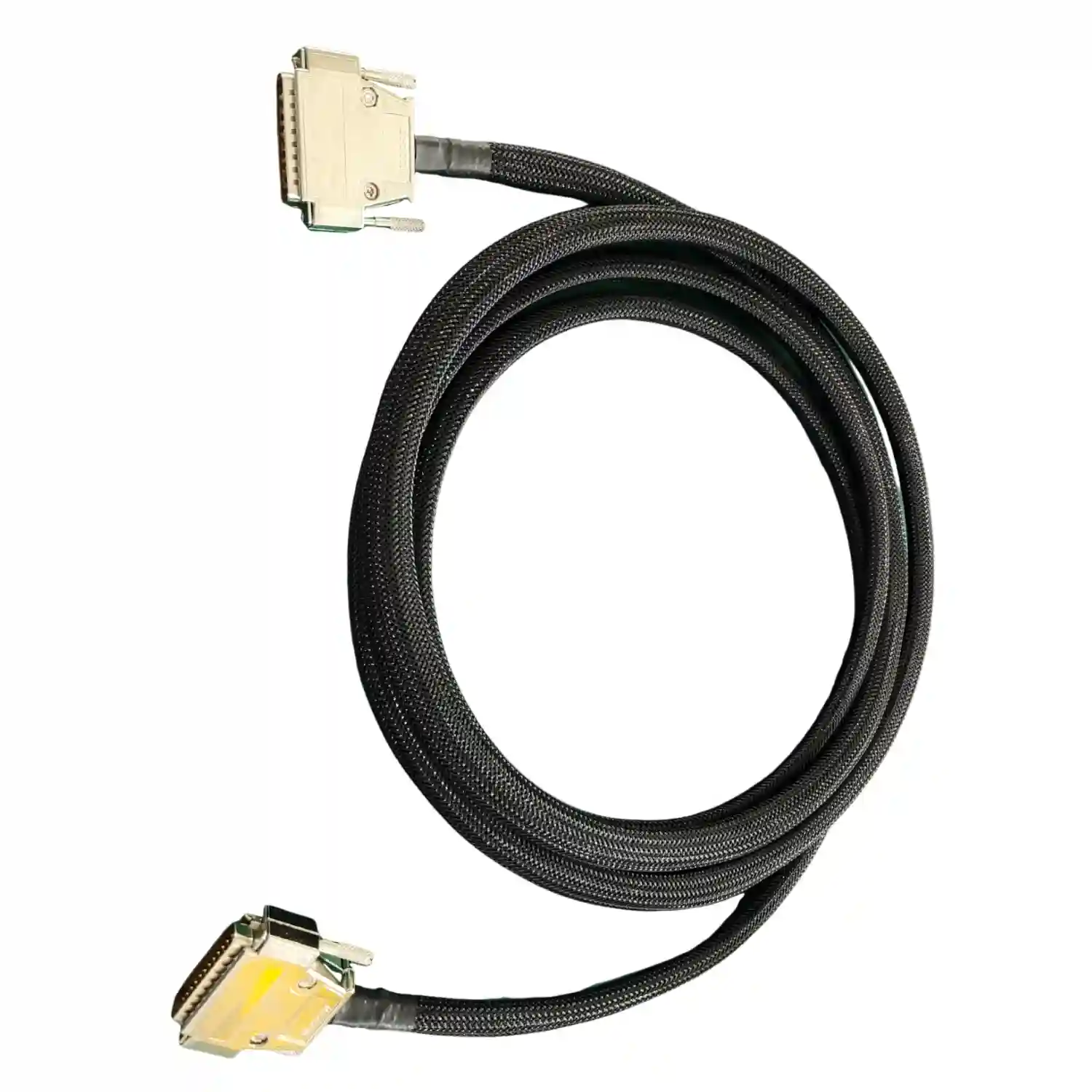

Custom ribbon cable assembly manufacturing with IDC connectors
Max Conductors80+
Min PitchPer drawing
TestedAgreed scope
Prototype LeadPer quote

Application Context

Why engineers specify WHP for ribbon cable assemblies

Ribbon cables remain the go-to interconnect for high-density, space-constrained designs where parallel conductor routing keeps signal paths short and installation fast. From 10-pin IDC headers inside industrial PLCs to 80-conductor D-Sub harnesses running between server backplanes, flat cable assemblies carry data and power across millions of electronic systems worldwide.

WHP builds custom ribbon cable assemblies for OEMs and contract manufacturers who need reliable terminations, verified continuity, and on-time delivery — whether the order is 50 prototypes or 50,000 production units per month. Our automated IDC presses deliver consistent insertion depth across every pin, and our test fixtures catch opens, shorts, and miswires before assemblies leave the production floor. For compact designs that need shielded signal paths instead of parallel flat conductors, our micro coaxial cable assembly service is often the closer fit, and flat display links that need 100 ohm pair review map to our LVDS cable assembly.

We source flat cable from UL-listed manufacturers and stock connectors from TE Connectivity, Molex, Amphenol, 3M, and Hirose. Our engineering team reviews pitch, conductor gauge, and connector type against your drawing and flags manufacturability issues for your approval before build.

Capabilities

Ribbon Cable Assembly Capabilities

From standard IDC flat cables to custom FFC/FPC assemblies — built to your specifications.

IDC Flat Ribbon Assemblies

Mass-terminated insulation displacement connector (IDC) ribbon cable assemblies for board-to-board and panel connections. We build with standard 1.27 mm and 2.54 mm pitch flat cable.

  • 1.27 mm & 2.54 mm pitch
  • 10 to 64 conductors
  • IDC mass termination

D-Sub Ribbon Cable Assemblies

Flat ribbon cables terminated to DB9, DB15, DB25, and DB37 D-Subminiature connectors for industrial control, serial communication, and legacy equipment interfaces.

  • DB9 through DB37
  • Solder & IDC termination
  • Shielded & unshielded

Discrete Wire Ribbon Cables

Individual wires bonded into a flat ribbon format for applications requiring specific wire gauges, conductor spacing, or mixed wire types. Available in PVC, PTFE, and silicone insulation.

  • AWG 18 to AWG 32
  • PVC, PTFE, silicone
  • Custom conductor spacing

Twisted Pair Ribbon Assemblies

Flat ribbon cables with alternating ground conductors or twisted pair configurations for improved signal integrity and reduced crosstalk. Used in data and instrumentation paths.

  • Twisted pair configurations
  • Ground plane integration
  • Reduced crosstalk design

Shielded Ribbon Cable Assemblies

EMI/RFI protected flat ribbon cables with aluminum foil shielding, drain wire, and conductive jackets. Designed for environments where electromagnetic interference is a concern.

  • Foil + drain wire shielding
  • EMI/RFI protection
  • Grounded drain conductor

Custom FFC/FPC Assemblies

Flexible flat cable (FFC) and flexible printed circuit (FPC) assemblies with ZIF/LIF connectors for compact electronics. Ultra-thin profiles from 0.2 mm for tight packaging.

  • 0.5 mm & 1.0 mm pitch ZIF
  • 0.2 mm min thickness
  • FFC & FPC compatible

Engineering Challenges

What we review before production

01

Pitch & Conductor Mapping

Confirming pitch (0.5–2.54 mm), conductor count, and pin-1 orientation against your wiring diagram so every conductor path is identified and verified before the first assembly is built.

02

IDC Termination Control

Setting up and validating calibrated IDC presses with controlled insertion depth so mass terminations stay repeatable from first article through high-volume production runs.

03

Shielding & EMI Protection

Selecting foil, drain-wire, or ground-plane construction and planning shield drain termination for assemblies that run in electrically noisy environments.

04

Testing & Verification

Planning customer-agreed continuity and pull-force checks — plus SPC monitoring on high-volume lots — to the quality level the program requires (insulation resistance & hi-pot via a qualified third party).

Technical Capabilities

Technical Specifications

Performance parameters for our ribbon cable assembly manufacturing.

Cable Pitch Options0.5, 0.635, 1.0, 1.27, 2.0, 2.54 mm
Conductor Count4 to 80 conductors (custom available)
Wire Gauge RangeAWG 18 to AWG 32
Insulation MaterialsPVC, PET, polyester, PTFE, silicone, UL-rated
Connector TypesIDC, D-Sub, DIP, card edge, ZIF/LIF, box header
Termination MethodsIDC mass termination, solder, crimp, ZIF
Shielding OptionsUnshielded, foil, foil + drain wire, ground plane
Operating Temperature-40 °C to +105 °C (PVC), up to +200 °C (PTFE)
Voltage Rating300 V RMS standard, up to 1000 V (PTFE)
Cable Length Range50 mm to 3 m+ (custom to spec)
Flammability RatingUL 2651, UL 20267, UL 94V-0
Standards ComplianceIPC/WHMA-A-620, UL, CSA, RoHS, REACH
Quality TestingContinuity (coverage agreed per program), pull force (sample) — insulation resistance & hi-pot via qualified third party
Electrical testing for ribbon cable assemblies

Manufacturing Process

Our ribbon cable assembly process

01Design Review & Material Selection
02Tooling & Connector Sourcing
03Precision Cable Cutting & Stripping
04IDC Termination & Connector Assembly
05Customer-agreed Electrical & Mechanical Testing
06Labeling, Packaging & Shipping

Quality & Testing

Verification for every ribbon cable assembly

The customer-agreed test plan defines automated continuity testing — sampling agreed per program — with each conductor path verified against a known-good reference. Pull-force checks are added to the requirement, and for high-volume runs we add statistical process control monitoring of IDC insertion force and pull-force trends, with defect rates tracked and reported per lot; insulation resistance and hi-pot are coordinated through a qualified third party.

Continuity TestInsulation Resistance (3rd-party)Hi-Pot (3rd-party)Pull-Force TestIDC Insertion Force (SPC)Visual InspectionLot TraceabilityTest ReportCorrective Action

Why WHP

Why choose our ribbon cable assembly services

Reliable terminations, verified continuity, and on-time delivery from prototype through high volume.

Customer-agreed Continuity Tested

The customer-agreed test plan defines automated continuity testing against a known-good reference — sampling agreed per program — so opens, shorts, and miswires are caught before assemblies leave the production floor.

IPC/WHMA-A-620 & ISO 9001

Assemblies are built to IPC/WHMA-A-620 Class 2/3 workmanship under the ISO 9001 quality system held by Hebei Cloom, with UL-listed cable (UL 2651 / UL 20267) and RoHS / REACH compliant materials.

Automated IDC Precision

Automated IDC presses deliver consistent insertion depth across every pin, with SPC monitoring of insertion force and pull-force trends on high-volume programs.

No MOQ & Fast Turnaround

No MOQ for samples or production. Lead time depends on complexity; confirmed in your quote.

Ribbon cable standards & compliance

Ribbon cable assemblies built and documented to the workmanship and compliance standards high-density interconnect programs require.

IPC/WHMA-A-620Class 2/3 Workmanship
UL 2651 / 20267Listed Cables
ISO 9001Quality System
ISO 9001:2015 Certificate

FAQ

Frequently Asked Questions

What ribbon cable pitches do you support?
We manufacture ribbon cable assemblies in all standard pitches: 0.5 mm, 0.635 mm, 1.0 mm, 1.27 mm (most common), 2.0 mm, and 2.54 mm. For FFC/FPC assemblies, pitch and connector compatibility require drawing and process review before quotation. Custom pitch spacing is available for discrete wire ribbon cables where individual conductors are bonded to your specified dimensions.
What is your minimum order quantity for ribbon cable assemblies?
No MOQ for samples or production. Lead time depends on complexity; confirmed in your quote.
Can you build ribbon cable assemblies with mixed connector types?
Yes, mixed-termination assemblies are one of our specialties. Common configurations include IDC on one end with a D-Sub on the other, box header to card edge, or ZIF connector to solder-tail pins. We also build breakout assemblies where a single ribbon cable fans out to multiple individual connectors for panel wiring.
How do you handle quality control for high-volume ribbon cable orders?
The customer-agreed test plan defines automated continuity testing — sampling agreed per program —. Our automated test fixtures verify each conductor path against a known-good reference. For high-volume runs, we add statistical process control (SPC) monitoring of IDC insertion force and pull-force trends. Defect rates are tracked and reported per lot; insulation resistance is coordinated through a qualified third party.
Do you provide shielded ribbon cable assemblies?
Yes. We build assemblies with foil-shielded ribbon cable that includes an integral drain wire for ground termination. The shielding provides protection against electromagnetic interference in electrically noisy environments such as factory floors, motor drive cabinets, and telecommunications closets. We can terminate the shield drain wire to a connector ground pin or to a separate ground lug.
What certifications and standards do your ribbon cable assemblies meet?
Our manufacturing processes comply with IPC/WHMA-A-620 Class 2 and Class 3 workmanship standards. Cables are UL-listed under UL 2651 and UL 20267. Our facility maintains ISO 9001:2015 certification, and all materials are RoHS and REACH compliant. For automotive applications, we follow IATF 16949 quality management requirements.

OEM Program Entry

Request a Ribbon Cable Assembly Quote

Share your specifications and our engineering team will provide a detailed quote within 24 hours. Upload your drawings, pinout diagrams, or cable assembly specifications for the most accurate pricing.

We will review

  • 01Manufacturability Review
  • 02Component Availability
  • 03Cost Drivers
  • 04Validation Requirements

Related Capabilities

Related Services

Adjacent interconnect options for products that mix flat parallel conductors, shielded signal paths, and dense routing.

Industries

Industries & Applications

Ribbon cable assemblies engineered for high-density interconnect requirements.

Computer & Server Hardware

Internal ribbon cable assemblies for hard drive arrays, SCSI interfaces, SATA backplanes, and motherboard-to-peripheral connections. Mass-produced with automated IDC termination.

Industrial Control Systems

PLC I/O module connections, HMI panel wiring, and DIN rail terminal block interfaces using ribbon cables with D-Sub or IDC terminations. Color-coded for field service.

Medical Devices & Diagnostics

Low-profile ribbon cable assemblies for patient monitoring equipment, ultrasound probes, and diagnostic analyzers. Biocompatible materials and controlled construction.

Telecommunications Equipment

High-density ribbon cable harnesses for patch panels, switch chassis, and central office equipment. Conductor counts up to 64 with consistent impedance.

Automotive Electronics

Flat ribbon cables for instrument clusters, infotainment systems, and seat wiring modules. Designed to meet automotive temperature ranges (-40 °C to +105 °C).

Consumer Electronics & Appliances

Compact FFC/FPC assemblies for LCD displays, printers, scanners, and home appliances. High-volume production with automated optical inspection and customer-agreed test.
