NiZn UPS Battery Cabinet Wiring Harness Solutions
High-Power, Low-Impedance, Flame-Retardant Modular Cable Assemblies for Data Centers, AI Workloads & Critical UPS Systems.
Current Rating500A+
DC Voltage1000V
Field Failure Rate<0.1%
Electrical Testing100%
Application Context
What Are NiZn UPS Wiring Harness Solutions?
NiZn (Nickel-Zinc) UPS battery wiring harness solutions are specialized cable assemblies engineered for modern high-performance uninterruptible power supply systems using nickel-zinc battery technology. Unlike traditional lead-acid UPS harnesses, NiZn battery cable assemblies must accommodate higher power density, lower internal impedance, and faster charge/discharge cycles characteristic of advanced battery chemistries.
Our custom NiZn UPS wiring harnesses are designed specifically for battery cabinet manufacturers like ZincFive, providing end-to-end cable assembly solutions for battery modules, cabinet interconnects, and system-level power distribution. These high-current, low-impedance battery cables are critical components in data centers, AI compute facilities, telecommunications infrastructure, and mission-critical backup power systems where reliability and safety are paramount.
The key differentiator for NiZn UPS harnesses lies in their electrical and mechanical design: optimized conductor cross-sections minimize voltage drop and resistive heating during high-current operation, while flame-retardant, halogen-free insulation materials meet stringent data center safety codes (UL94 V-0, NFPA 70). Modular quick-connect designs enable rapid field installation and maintenance, reducing downtime for critical infrastructure.
These harnesses serve a range of critical-power environments — from data center and AI workload UPS distribution and IT server room power, to industrial engine starting, smart transportation intersection UPS, and future-ready EV charging and grid-buffer systems.
Applications
Industry Applications & Solutions
Specialized UPS and battery harness solutions across diverse industries.
Industrial Engine Starting Harnesses
Heavy-duty starter cables and ground straps for diesel generators, industrial engines, and backup power systems.
- High-current cranking capacity
- Oil and vibration resistant
- Marine and industrial grade
Smart Transportation Intersection UPS
Outdoor-rated UPS harnesses for traffic signals with weatherproof, lightning protection, and IP67/IP68 connections.
- UV and weather resistant
- Lightning surge protection
- Waterproof sealed connectors
IT Server Room Harnesses
Server rack power distribution, UPS bypass, and maintenance configurations for IT infrastructure.
- Server PDU connections
- Hot-swap battery support
- Cable management integration
EV Charging & Grid Buffer Systems
High-voltage DC harnesses for EV fast charging stations and grid-tied energy storage systems (future-ready solutions).
- HV safety interlocks
- CCS/CHAdeMO compatible
- Grid-tied inverter connections
Engineering Challenges
Review risk before production
Ultra-Low Impedance
Ultra-low impedance connections are critical for NiZn performance — total assembly resistance verified to <0.5mΩ through precision crimping and low-impedance connector selection.
Higher Current & Conductor Sizing
Higher current demands necessitate larger conductor sizes (typically 1-2 AWG steps up), with optimized cross-sections to minimize resistive heating during high-current operation.
Flame-Retardant Safety
UL94 V-0 flame-retardant, halogen-free (LSZH) materials mitigate thermal runaway risk and meet stringent data center safety codes (UL94 V-0, NFPA 70).
Voltage Drop & Thermal
Voltage drop verification (<50mV @ 300A over 3-meter runs) and thermal performance modeling ensure reliable operation under peak loads for mission-critical systems.
Technical Capabilities
Technical Specifications & Capabilities
Comprehensive manufacturing capabilities with verified electrical performance data for high-current, low-impedance UPS battery cable assemblies.
Current Rating10A - 500A+
Voltage Rating12V - 1000V DC
Wire GaugeAWG 26 - AWG 4/0
Conductor MaterialCopper, Tinned Copper, Multi-strand
Insulation MaterialsPVC, XLPE, Silicone, TPE, Halogen-free
Flame RatingUL94 V-0, LSZH Available
Temperature Range-40°C to +125°C
Connector BrandsAnderson, Molex, TE, Amphenol, Custom
Testing StandardsHipot, IR, Contact Resistance, Pull Force
CertificationsUL 1977, IEC 62040-1, UL94 V-0, IATF 16949, ISO 9001, UL, CE, RoHS
Manufacturing Process
A controlled build, drawing to shipment
01Drawing / BOM Review
02Connector Sourcing
03Cutting & Stripping
04Crimping / Assembly
05In-process Inspection
06Electrical Test
07Final Inspection
08Packaging & Export

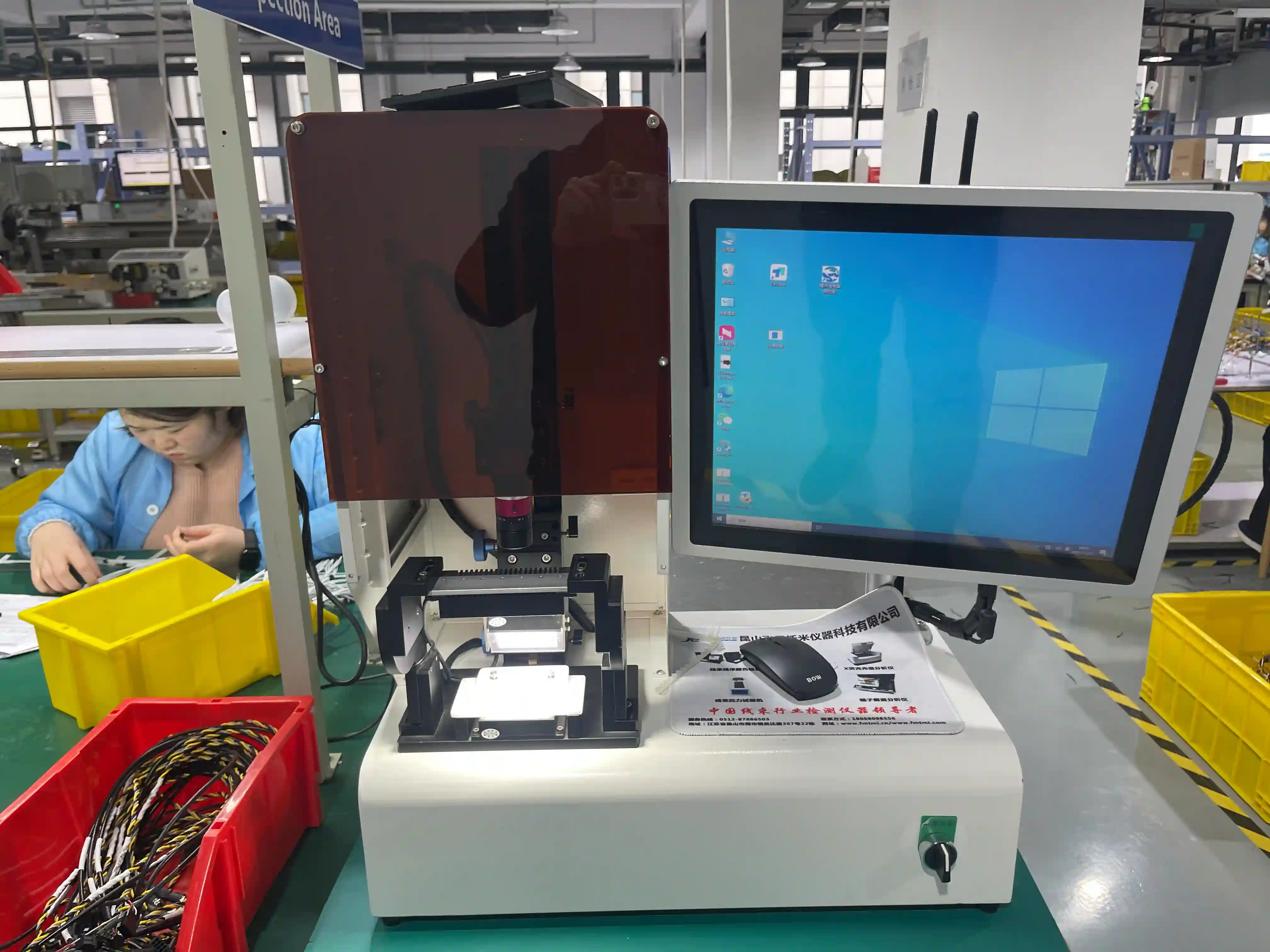

Quality & Testing
Documentation for OEM review
Every UPS battery harness gets 100% electrical testing with Hi-Pot dielectric, insulation resistance, contact resistance and pull-force verification — all documented with complete material traceability before it ships.
Material ApprovalHi-Pot Dielectric (3000V AC)Insulation ResistanceContact ResistanceCrimp Pull-Force100% Continuity TestFinal InspectionLot Traceability
Why WHP
Why Choose Us for Your UPS Battery Wiring Needs?
Trusted partner for complex, mission-critical cable assembly projects.
Specialized Expertise in UPS & Energy Storage
Over 20 years of wire harness manufacturing experience with deep expertise in high-complexity custom solutions for UPS, battery cabinets, and energy storage systems.
B2B Customization Focus
We exclusively provide custom B2B solutions tailored to your exact specifications. No off-the-shelf products—every harness is engineered for your unique application.
Local Support, Global Manufacturing
Global sales and technical support team combined with IATF 16949 certified manufacturing facilities in China and the Philippines for cost-effective production.
End-to-End Solutions
From initial design collaboration through global component sourcing, manufacturing, testing, and delivery—we manage your entire cable assembly project.
Global Connector Sourcing
Leveraging long-term partnerships with connector manufacturers worldwide, we secure competitive pricing and shorter lead times for Molex, TE Connectivity, Anderson and more.
Quality Certifications
IATF 16949 automotive-grade quality management, ISO 9001, UL/CE/RoHS compliance, and 100% electrical testing ensure reliability for mission-critical systems.
UPS & battery industry standards
Our products are tested to UPS-specific standards under IATF 16949 and ISO 9001 certified manufacturing, with flame-retardant materials and full test documentation.
IATF 16949Certified
UL 1977 / IEC 62040-1UPS Standards
UL94 V-0Flame Rating
FAQ
Frequently Asked Questions
What makes NiZn battery harnesses different from traditional lead-acid UPS harnesses?
NiZn batteries operate at different voltages (1.65V nominal vs 2.0V for lead-acid) and have lower internal resistance, requiring cable assemblies with optimized low-impedance design to handle higher power density and faster charge/discharge cycles. Our NiZn harnesses feature enhanced conductor sizing, ultra-low contact resistance terminations, and flame-retardant materials suited for modern high-performance UPS systems.
Can you source specific connectors for our UPS battery system?
Yes, we maintain global sourcing relationships with major connector manufacturers including Anderson Power Products, Molex, TE Connectivity, and Amphenol. We can also custom-design terminals and housings to match your exact UPS cabinet specifications. Our long-term partnerships often secure better pricing and lead times.
What certifications do your UPS cable assemblies have?
Our products are tested to UPS-specific standards including UL 1977 (Component Connecting Cables) and IEC 62040-1 (UPS Safety Requirements). Manufacturing facilities hold IATF 16949 and ISO 9001 certifications. All assemblies feature UL94 V-0 flame-retardant materials and comply with CE, RoHS, and REACH directives. For telecom applications, NEBS GR-1089 testing is available. We provide complete material traceability and test documentation.
Do you provide design support for custom UPS harness applications?
Absolutely. Our global technical team collaborates closely with your engineering department from initial concept through prototyping. We offer 3D CAD modeling, electrical parameter calculations, and design-for-manufacturing (DFM) feedback to optimize your harness design.
What are your typical lead times for custom UPS harness orders?
Lead times vary by order size: Prototype samples: 7-10 business days | Small batch (1-50 units): 2-3 weeks | Production (50-500 units): 4-5 weeks | Large volume (500+ units): 6-8 weeks. RUSH SERVICE AVAILABLE: Expedited production with +15% premium can reduce lead times by 30-40% for critical projects.
What happens if a harness fails under warranty?
We provide a 2-year manufacturing defect warranty with field failure rate <0.1%. For verified manufacturing defects, free replacement units are shipped within 48 hours with prepaid return shipping. Our technical team provides remote troubleshooting support to diagnose issues quickly and minimize downtime.
What support is available during installation?
Our technical team provides remote commissioning support via Zoom/Teams. Complete installation documentation with torque specifications and connection diagrams is included with every order. For complex installations, on-site support may be available (additional fees apply). Email support response time: <24 hours.
Do you maintain replacement stock?
For installations over 100 units, we offer consignment inventory programs where we maintain safety stock at our distribution partners or your facility. This ensures rapid replacement availability and reduces your inventory carrying costs. VMI (Vendor Managed Inventory) programs are available for ongoing production requirements.
Can you handle low-volume, high-complexity custom projects?
Yes, this is our specialty. Unlike high-volume commodity harness manufacturers, we focus exclusively on complex, custom-engineered assemblies. We regularly produce low-to-medium volume runs (50-5000 pieces) with high technical requirements and provide the same engineering attention to small orders as large production runs.
OEM Program Entry
Get Your Custom UPS Wiring Harness Quote Today
Whether you need NiZn battery cabinet interconnects, high-current DC power cables, or complete custom harness assemblies, our team is ready to deliver engineered solutions tailored to your exact specifications.
We will review
- 01Design Feasibility
- 02Component Availability
- 03Cost Drivers
- 04Validation Requirements
Related Capabilities
Related Cable Solutions
Custom cable assembly and harness services that pair with NiZn UPS battery harness programs.
Core Advantages
Core Advantages of Our UPS Battery Harness Solutions
Engineered for maximum reliability, safety, and performance in mission-critical power systems.
High-Power / Low-Impedance Design
Optimized conductor design reduces internal resistance for large current rapid charge/discharge applications, minimizing energy loss and heat generation.
- Ultra-low impedance construction
- High-current carrying capacity (100A-500A+)
- Reduced voltage drop during peak loads
- Enhanced power density for compact installations
Flame-Retardant Safety
UL94 V-0 rated flame-retardant materials with halogen-free options meet stringent data center safety standards and thermal runaway risk mitigation.
- UL94 V-0 flame retardant rating
- Halogen-free (LSZH) material options
- Thermal runaway resistant design
- Compliant with data center safety codes
Modular Quick-Connect Design
Standardized connector interfaces enable rapid installation and replacement, reducing on-site assembly time and supporting hot-swap configurations where required.
- Pre-terminated quick-connect assemblies
- Standardized connector compatibility
- Tool-free installation options
- Hot-swap capable configurations
Field Maintainability
Clear labeling, color-coding, and accessible design facilitate easy inspection, maintenance, and replacement, minimizing downtime for critical systems.
- Color-coded wire identification
- Clear labeling and documentation
- Accessible service points
- Reduced mean time to repair (MTTR)
Product Range
Types of UPS & Battery Cable Assemblies We Manufacture
Comprehensive custom battery harness solutions for every component of your UPS system.

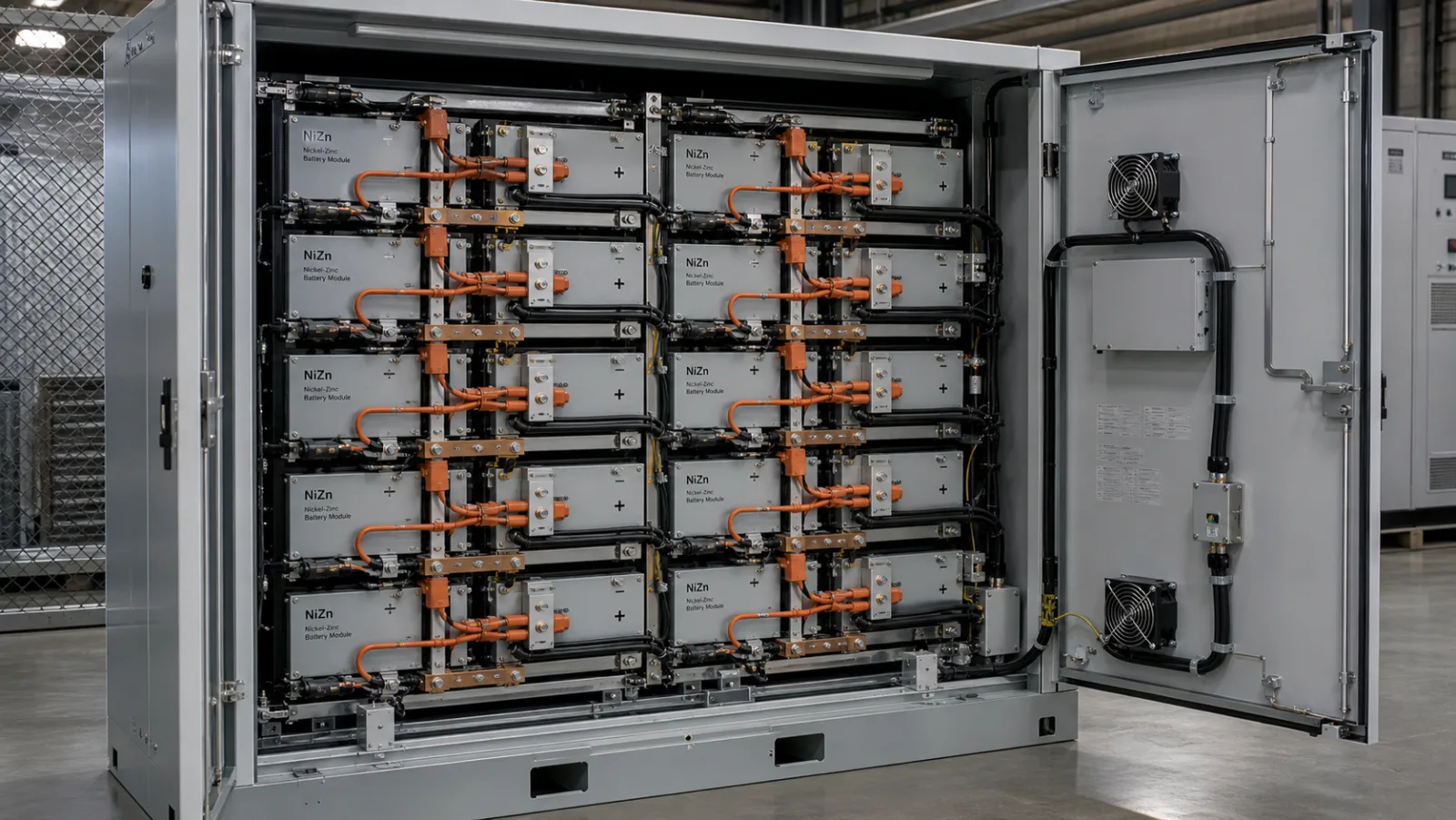

NiZn UPS Battery Cabinet Interconnects
High-flexibility interconnect harnesses for battery module and cabinet-to-cabinet connections in NiZn UPS systems.
- Inter-module and inter-cabinet connections
- High-flex silicone or TPE insulation
- Current ratings: 50A-300A
- Custom lengths and configurations
High-Current DC Power Cables
Heavy-duty DC power cables for main bus connections and distribution systems in UPS and energy storage applications.
- AWG 4/0 to AWG 10 conductor sizes
- Voltage ratings up to 1000V DC
- Copper or tinned copper conductors
- Bolted lug or compression terminations
BMS/EMS Communication Harnesses
Shielded signal harnesses for Battery Management System (BMS) and Energy Management System (EMS) data acquisition and control.
- Multi-pair shielded twisted cables
- CAN bus, Modbus, RS485 protocols
- EMI/RFI shielding for signal integrity
- Connector options: D-sub, RJ45, custom
HVIL Safety Interlock Harnesses
High-Voltage Interlock Loop (HVIL) safety harnesses for fault detection and protection in high-voltage battery systems.
- Safety interlock circuit design
- Meets automotive and industrial HV standards
- Redundant safety features
- Integration with system controllers
Temperature Sensing & Monitoring Cables
Multi-point temperature sensor harnesses for thermal monitoring and thermal runaway early warning systems.
- NTC/PTC thermistor integration
- Multi-channel temperature monitoring
- Fast response time for safety
- Waterproof sensor assemblies available
Comparison
NiZn vs. Lead-Acid UPS Harness Requirements
Understanding the differences when upgrading your UPS battery system.
| Feature | NiZn Battery Systems | Lead-Acid Systems |
| Nominal Cell Voltage | 1.65V | 2.0V |
| System Voltage (24-cell) | 39.6V | 48V |
| Power Density | Higher (faster discharge) | Standard |
| Required Impedance | Ultra-low (<0.5mΩ total) | Standard |
| Charge/Discharge Rate | Faster (2-4C capable) | Slower (0.1-0.5C) |
| Harness Conductor Size | Larger for same current | Standard sizing |
Migration: Key Design Changes
Upgrading from lead-acid to NiZn changes the electrical envelope your harness must handle.
- Lower system voltage requires reconfiguration of battery strings
- Higher current demands necessitate larger conductor sizes (typically 1-2 AWG steps up)
- Ultra-low impedance connections critical for NiZn performance
- Different connector types may be specified by battery manufacturer
What We Provide
Our engineering team can review your existing lead-acid configuration and deliver a detailed conversion plan.
- Engineering analysis of your existing lead-acid harness configuration
- Optimized conductor sizing calculations for NiZn requirements
- Voltage drop verification and thermal performance modeling
- Prototype samples for testing before full production commitment
Electrical Performance
Electrical Performance Data
Measured conductor resistance and voltage drop specifications for common AWG sizes.
| Conductor Size | Resistance (mΩ/m) | Voltage Drop @ Current | Contact Resistance (μΩ) |
| AWG 2/0 | 0.16 | <50mV @ 300A over 3m | <100 |
| AWG 1/0 | 0.20 | <60mV @ 250A over 3m | <120 |
| AWG 2 | 0.32 | <80mV @ 200A over 3m | <150 |
| AWG 4 | 0.51 | <100mV @ 150A over 3m | <180 |
| AWG 6 | 0.81 | <120mV @ 100A over 3m | <200 |
Performance Advantage: Our optimized harness designs achieve 30-40% lower total assembly resistance compared to standard battery cables through precision crimping, high-conductivity materials, and low-impedance connector selection.
Testing & Standards
Testing Standards & Compliance
UPS-specific standards paired with 100% electrical verification on every assembly.
UPS-Specific Standards
- UL 1977 - Component Connecting Cables
- IEC 62040-1 - UPS Safety Requirements
- UL 94 V-0 - Flame Retardant Rating
- NEBS GR-1089 - Telecom Applications (available)
Quality Testing Performed
- Hi-Pot Dielectric Strength (3000V AC)
- Insulation Resistance (500V DC, >100MΩ)
- Contact Resistance (<100μΩ for power terminals)
- Pull Force Testing (per connector specification)
- 100% Electrical Continuity Verification
Customer Success Story
Proven at Scale: 5MW Data Center UPS Installation
Leading colocation data center operator, Asia Pacific region.
Project Scope
500+ battery cabinet interconnect assemblies delivered · 300A rated high-current DC power cables · AWG 2/0 copper conductors with Anderson SB350 connectors · Total assembly resistance <0.5mΩ (verified by testing).
Key Requirements
UL94 V-0 flame-retardant rating mandatory · Voltage drop <50mV @ 300A over 3-meter runs · Color-coded identification for 48V DC systems · Field-replaceable modular design.
Results Delivered
On-time delivery in 5 weeks from PO to site · Zero field failures during 12-month commissioning · 30% faster installation vs. previous supplier · Customer reordered for Phase 2 expansion (300+ units).
Assemblies Delivered500+
Current Rating300A
Field Failure Rate0%
Total UPS Capacity5MW
“The precision of the harness assemblies and comprehensive testing documentation significantly reduced our commissioning time. We’ve standardized on these harnesses for all future UPS deployments.”
— Senior Infrastructure Engineer, Colocation Provider
Pricing & Lead Time
Pricing & Quote Process
Transparent pricing guidance to help you plan your budget.
Pricing Factors
Custom harness pricing varies based on several key factors:
- Conductor Size (AWG) — Larger conductors (AWG 2/0, 4/0) cost more due to material
- Cable Length — Longer assemblies require more material and labor
- Connector Type & Brand — Anderson, Molex, TE connectors vary in cost
- Order Quantity — Volume pricing breaks at 50, 100, 500+ units
- Delivery Requirements — Standard vs. expedited shipping, packaging
Typical Price Range
Representative pricing for common NiZn battery cabinet harnesses (100+ unit pricing):
Small Interconnects
AWG 6-10, 1-2m length, standard connectors$80-$150
AWG 6-10, 1-2m length, standard connectors$80-$150
Standard Cabinet Cables
AWG 2-4, 2-4m length, Anderson/Molex connectors$150-$280
AWG 2-4, 2-4m length, Anderson/Molex connectors$150-$280
Heavy-Duty Main Bus
AWG 2/0-4/0, 3-5m length, high-current terminals$280-$500
AWG 2/0-4/0, 3-5m length, high-current terminals$280-$500
Note: Prices shown are indicative for 100+ unit orders. Small batch pricing (1-50 units) typically 20-30% higher due to setup costs. Expedited delivery available with +15% premium.
How to Get Your Quote
01Submit Specs
Share technical requirements, drawings, or photos
02Engineering Review
48-hour technical analysis and feasibility check
03Detailed Quote
Pricing, lead time, technical recommendations provided
04Prototype Sample
Optional testing sample (7-14 days)
05Production
Manufacturing and global delivery
Production Lead Time Breakdown
7-10
Business Days
Prototype SamplesFor testing & validation
2-3
Weeks
Small Batch (1-50 pcs)Quick turn projects
4-5
Weeks
Production (50-500 pcs)Standard lead time
6-8
Weeks
Large Volume (500+ pcs)Volume manufacturing
RUSH SERVICE AVAILABLE — Expedited production with a +15% premium can reduce lead times by 30-40% for critical projects.
