Why Cable Selection Matters in Warehouse Robot Fleets
Cable faults can interrupt automated fulfillment alongside software, controls, sensors, and mechanical systems. The right cable construction and routing plan should therefore be treated as part of the equipment reliability review.
These systems often run on continuous-duty schedules with narrow maintenance windows. Buyers should compare cable construction, tested bend radius, connector retention, routing, and replacement access against the actual duty cycle instead of choosing on unit price alone.
The Hidden Cost Reality
Cable-related downtime varies by system architecture, routing, maintenance, and operating conditions. Ask the integrator to identify cable failure modes and acceptance evidence for each moving axis.
High-flex robotic cable assembly for warehouse automation systems
The problem is simple: Treating cables as commodities can overlook application requirements. But autonomous fulfillment systems aren't plugging in desk lamps—they're subjecting cables to repeated flexing throughout the equipment duty cycle, exposure to hydraulic mist, electromagnetic interference, and constant vibration.
Free Cable Selection Consultation!
Get expert guidance on selecting the right cables for your automation project. Share the motion profile, environment, and validation requirements for review.
System 1: Robotic Pick & Pack Cables
The Setup: A robotic arm in a pick station uses cables supporting joint motors, encoders, vision sensors, and end-effectors that swap between handling eggs and engine blocks.
What Goes Wrong: A cable can fail early if its tested motion profile does not match the robot. Calculate the required cycle count from the actual operating schedule and compare it with supplier test conditions.
High-flex robotic wire harness with drag chain rated construction
Critical Specifications:
| Requirement | Specification | Why It Matters |
|---|---|---|
| Flex Life | Customer-specified cycle target | Match the validated motion profile |
| Connectors | M12/M8 circular, IP67 rated | Verify retention and environmental suitability |
| Bend Radius | Per cable datasheet for the motion profile | Undersized bends can increase fatigue |
| Jacket Material | TPE or PUR | Verify the compound for repeated flexing |
Costly Motion-Profile Mismatch
Choosing a lower-cycle cable without matching the actual motion profile can create early replacements and production downtime. Compare the cable datasheet, installed bend radius, speed, acceleration, and expected cycle count before release.
Review note: Compare the customer-specified conductor construction, cable datasheet, installed bend radius, and motion profile before release. See our robotics harness manufacturing scope.
System 2: Conveyor & Sorting System Cables
Conveyor and sorting systems combine continuous vibration, oil or coolant exposure, and electromagnetic interference from Variable Frequency Drives (VFDs) .
Precision cable cutting and stripping for VFD-rated motor cables
The VFD Problem Explained
VFDs control motor speed by chopping DC voltage into high-frequency pulses. This creates electrical noise that can couple into nearby sensor and scanner cables, so photoelectric sensors and barcode readers can misbehave when the motor and signal cables share a route. The two boxes below separate the motor-side and signal-side checks.
Motor cables (VFD output)
- Use shielded cable with symmetrical geometry between drive and motor. The VFD article lists it as a preventive measure against the high-frequency common-mode voltages and currents of PWM drives.
- Keep the drive-to-motor run short. The same article gives about 50 m (150 ft) as a recommended maximum for 460 V / 575 V systems, because pulses reflect from the motor terminals and can produce overvoltages up to twice the DC bus voltage. Use your drive maker's limit for the actual drive.
- Follow the drive manual for shield termination and motor grounding; poor stator grounding is linked to shaft-to-ground bearing currents.
Sensor, scanner and fieldbus cables
- Route photoelectric sensor, barcode reader and encoder cables apart from motor cables instead of bundling them in the same tray or carrier where the layout allows.
- Choose the M12 coding by function, not by thread size; the table further down lists what each coding is used for.
- Do not read an IP rating as a washdown rating: IP67 and IP69K are different tests (see the ingress row in the table below).
System 3: AS/RS & Goods-to-Person
Automated Storage & Retrieval shuttles can impose demanding repeated motion. Specify travel, bend radius, acceleration, duty cycle, and service-life target before selecting a cable.

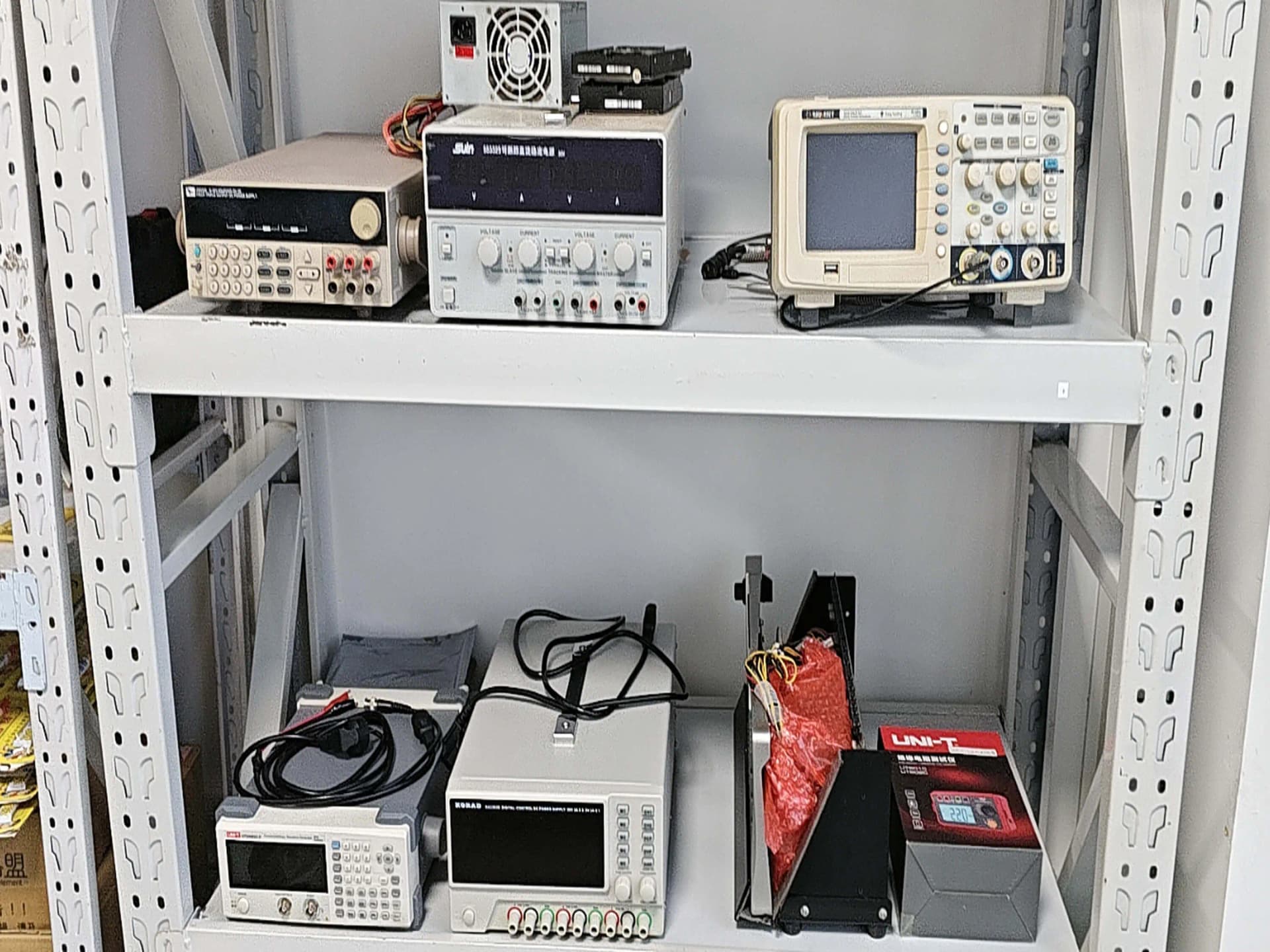

High-flex cable testing equipment for AS/RS applications
AS/RS systems may use EtherCAT for real-time control. Beckhoff EtherCAT wiring guidance specifies at least Cat5 for the devices described; Cat6a is not a universal EtherCAT minimum. Match the cable, connector, shielding, and motion rating to the actual equipment.
System 4: Packaging & Labeling Equipment
Modular harness production for packaging equipment
Printhead and nearby component temperatures can stress insulation. Measure or obtain the temperature at the cable route and select an insulation construction qualified for continuous and transient exposure.
The Midnight Maintenance Test
Design harnesses so a technician can identify and replace them safely using clear labels and service documentation. Learn more about custom cable assembly design.
System 5: Control Cabinets & Power Distribution
Document panel wiring so someone unfamiliar with the system can troubleshoot it later. Follow industry control panel wiring standards.
System 6: AMR/AGV & Charging Stations
Battery cables on AMRs must be sized for the actual charge and discharge currents, vibration, and thermal conditions. Specify the expected docking cycle count and validate connector wear under the intended duty cycle.
Charging Connector Selection Risk
A lower connector purchase price can be offset by replacement work and downtime if its mating-cycle rating, contact system, or environmental protection does not suit the charger. Compare product-specific qualification evidence and maintenance requirements.
System 7: Industrial Ethernet Infrastructure
Ethernet category alone does not establish motion, oil, or environmental suitability; compare the exact cable construction. Learn more about industrial Ethernet cable requirements.
| Feature | Consumer | Industrial |
|---|---|---|
| Conductor | Often solid; verify motion suitability | Often stranded; verify flex rating |
| Jacket | Verify compound for the environment | Verify oil and chemical resistance |
| Lifespan | Installation-dependent | Per validated duty cycle |
Connector, Ethernet and Ingress Quick Reference
These entries summarize public references: the M12 connector, EtherCAT and IP Code articles. Confirm every value in the standard and in the datasheet of the exact connector and cable before release.
| Need | Option | What the reference states | Check before release |
|---|---|---|---|
| Sensors, actuators, DC power | M12 A-coded | Listed for DC power, sensors, actuators and 1 Gb/s Ethernet; 2 to 17 pins; 4 A / 2 A and 250 V / 60 V listed | Confirm the contact current for your pin count in the connector datasheet |
| PROFINET or EtherNet/IP at 100 Mb/s | M12 D-coded | 4-pin; listed for Fast Ethernet only (100 Mb/s) | Do not specify it for a gigabit link |
| Higher-speed Ethernet | M12 X-coded | 8-pin; defined in IEC 61076-2-109 for data up to 500 MHz; listed for 10 Gb/s | Match the cable category and shielding to the connector |
| EtherCAT segments | 100BASE-TX over twisted pair | Cable length up to 100 m between two nodes; standardized in IEC 61158 | Check the cable's motion rating on moving segments, not only the category |
| Ingress protection | IP67 / IP69K (IEC 60529) | IP67 is immersion to 1 m for 30 minutes; IP69K covers high-pressure, high-temperature jets; ratings are not cumulative beyond IPX6 | State the real exposure (washdown, coolant, dust) and the test it needs |
Moving cables add a second question that the table does not answer: whether the cable construction is rated for the motion. Cable makers publish continuous-flex lines by function (for example, igus lists control, motor, servo, robot, bus and data cable categories at igus chainflex), and the bend radius and cycle rating come from the datasheet for the exact cable and its test conditions. For robot-specific assembly scope see our robotics cable assemblies page.
The Engineer's Selection Checklist
Flex Life Calculation (Critical!)
- Measure actual cycles per shift (don't guess!)
- Multiply: cycles/min × minutes/shift × shifts/day × days/year × lifespan
- Choose a justified design margin for the application
- If calculated cycles exceed cable rating, pick a different cable
Example:
Illustrative calculation only: assume 8 cycles/min, 12 hrs/day, 365 days/year, and 10 years: 8 × 60 × 12 × 365 × 10 = 21,024,000 cycles (about 21 million) Add a justified margin and compare with tests at the actual bend radius, speed, and temperature; this calculation is not a cable-life guarantee.
Common Cable Selection Mistakes
❌ Mistake #1: "Good Enough" Flex Ratings
Potential outcome: A cable life mismatch can lead to replacements and downtime.
The Fix: Set a design margin justified by duty-cycle uncertainty and test evidence.
❌ Mistake #2: Ignoring Environment
Potential outcome: A connector may be unsuitable for the actual coolant, dust, pressure, or immersion exposure even if it has an ingress rating.
The Fix: Map actual environment. Measure temperatures, document exposures, spec accordingly.
Conclusion: Evaluate Cable Lifecycle Cost
A cable qualified for the actual motion and environment may reduce replacement work and downtime. Compare purchase cost, installation effort, maintenance access, and supplier test evidence rather than assuming a fixed life or cost advantage.
For autonomous fulfillment systems, cable selection belongs in the reliability and maintenance plan. Estimate the operational consequences using site-specific data.
Your Next Steps:
- Audit your infrastructure using the checklists above
- Demand test data from suppliers (not marketing claims)
- Calculate Total Cost of Ownership, not just price
- Document everything for future reference
